商品の詳細:
|
| 材料: | ステンレス鋼 | 色: | 白か銀 |
|---|---|---|---|
| 表面処理: | または電流を通された習慣 | 繋がり: | シームレス |
| 手術: | マニュアル | サイズ: | 80MM-600MM |
| アプリケーション: | 産業用 | 使用法: | リンク管 |
| 取引手段: | FOB/CIF | 輸送: | 空気、海洋 |
| MOQ: | 100個 | ||
| ハイライト: | HVAC ventilation pipe clips,adjustable spring hose clamp,quick release pipe clamp |
||

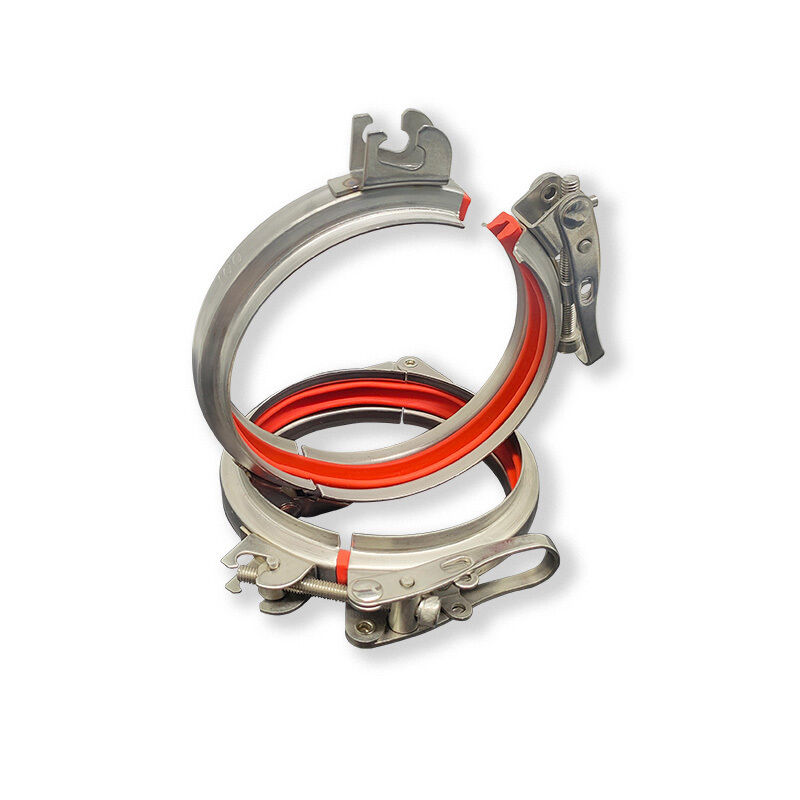

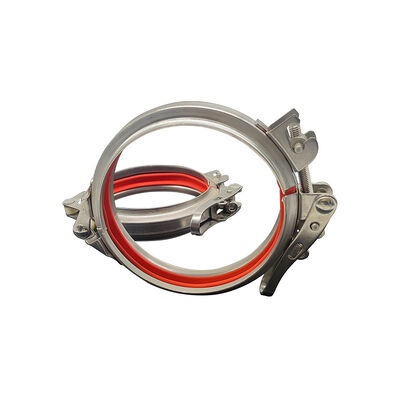

HAVC Systems Ventilation Circular Pipe Clips Spring Hose Clamp Adjustable Pipe Hose Clamp
Description:
Material: Stainless Steel 304/Galvanized
Specifications: 80/100/120/125/140/150/160/180/200/225/250/275/300/315/350/400/450/500/550/600
The connecting clamp used for ventilation flipping pipes has a thickness of 0.8-1.2mm for the clamped pipe and a flange height of 5.5-6.5mm for the clamped flange
Advantages:
1.Factory production and direct shipment
2.Stainless steel 304 material is wear-resistant and corrosion-resistant
3.Size can be customized
4.Convenient transportation
5.Easy disassembly and installation
Characteristic:
| D MM | PRODUCT CODE | A MM | H MM | THICKNESS MM |
| 80 | LMG80 | 28 | 8 | 1 |
| 100 | LMG100 | 28 | 8 | 1 |
| 120 | LMG120 | 28 | 8 | 1 |
| 125 | LMG125 | 28 | 8 | 1 |
| 140 | LMG140 | 28 | 8 | 1 |
| 150 | LMG150 | 28 | 8 | 1 |
| 160 | LMG160 | 28 | 8 | 1 |
| 180 | LMG160 | 28 | 8 | 1 |
| 200 | LMG200 | 28 | 8 | 1 |
| 225 | LMG225 | 28 | 8 | 1 |
| 250 | LMG225 | 28 | 8 | 1 |
| 275 | LMG275 | 28 | 8 | 1 |
| 300 | LMG300 | 28 | 8 | 1 |
| 315 | LMG315 | 28 | 8 | 1.2 |
| 330 | LMG330 | 28 | 8 | 1.2 |
| 350 | LMG350 | 28 | 8 | 1.2 |
| 400 | LMG400 | 28 | 8 | 1.2 |
| 450 | LMG450 | 28 | 8 | 1.2 |
| 500 | LMG500 | 28 | 8 | 1.2 |
| 550 | LMG550 | 28 | 8 | 1.2 |
| 600 | LMG600 | 28 | 8 | 1.2 |
